PLAN 454-13

“Not So Big Bungalow”

Key Specs


1600
sq ft

2
Beds

2
Baths

2
Floors

0
Garages

Plan Description


"This floor plan benefits from a number of cozy nooks and built-ins that are in tune with the kind of spaces people crave." - Fine Homebuilding Magazine Introducing the Not So Big® Bungalow by award-winning architect and best-selling author Sarah Susanka: it updates the Craftsman bungalow idea for modern living. The neighborly 2 bedroom, 2 bath 1,605 sq. ft plan is packed with thoughtful features that make it feel larger than it is. Built-ins abound, from the wide window seat in the hall (call it a "media passage" since there's room for a flat screen TV on the wall opposite the window seat) to the desk alcove in the living room and the L-shaped banquette in the breakfast area. The ground floor master bedroom also includes a built-in desk. For alfresco dining there’s a porch and deck off the living room at the rear of the house. The upstairs bedroom is a flexible space thanks to the Murphy bed in one wall and a wide work counter running under the dormer windows. This space opens to a flexible TV room/home office. A storage loft over the master bedroom can easily be converted into a third bedroom. The design deftly expresses Sarah's philosophy that you don't have to build bigger to build better. These plans are designed to be built with a super efficient and eco-friendly SIPs (structural insulated panel) kit package, and can also be built with conventional wood framing. The SIPs Kit is available through Extreme Panel -- see link here: http://sipsmart.com/bungalow.html. For more, see Sarah's Yahoo article on the plan, and the recent Yahoo Homes article on Sarah and this plan -- links below. The house is full of wonderful nooks and crannies. All of the spaces are compact, but still big enough and well enough laid out to work properly. Energy-efficient by virtue of it’s size as well as the SIPs construction, this house does not compromise to achieve its cost and energy savings.

Floor Plans

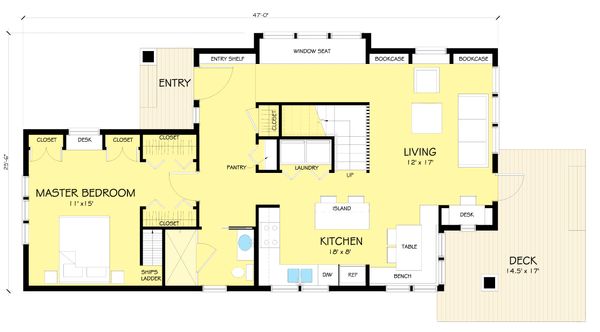

Floor Plan - Main Floor
Craftsman Floor Plan - Main Floor Plan #454-13

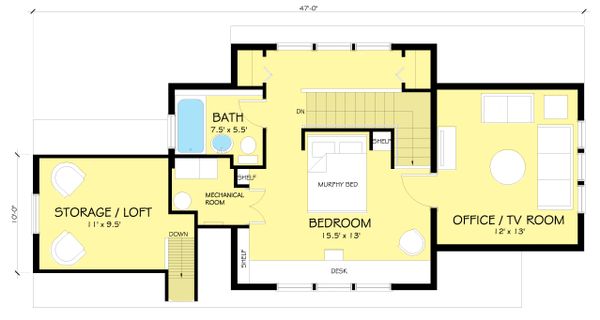

Floor Plan - Upper Floor
Craftsman Floor Plan - Upper Floor Plan #454-13

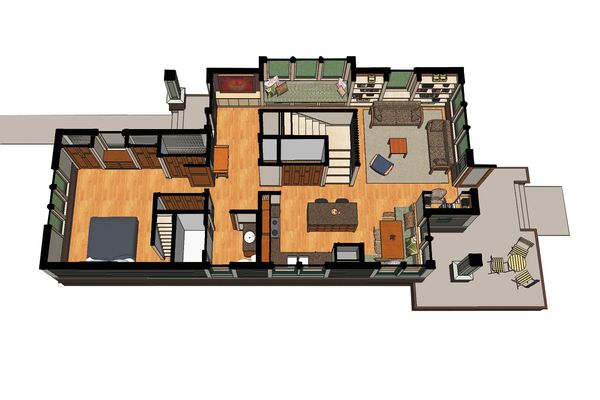

Floor Plan - Other Floor
Craftsman Floor Plan - Other Floor Plan #454-13

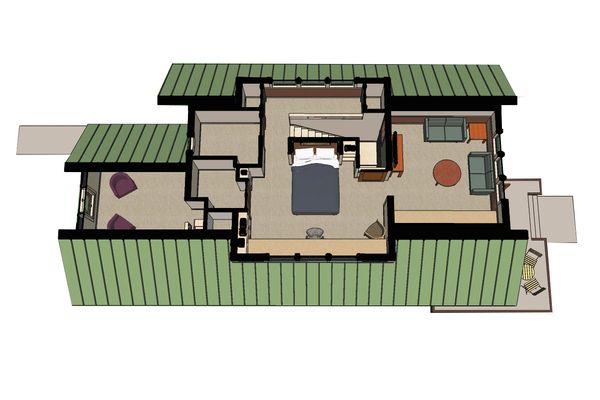

Floor Plan - Other Floor
Craftsman Floor Plan - Other Floor Plan #454-13

Full Specs & Features


Dimension
Depth : 47'
Height : 22'
Width : 26'
Area
Main Floor : 960 sq/ft
Porch : 240 sq/ft
Upper Floor : 640 sq/ft
*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Ceiling
Main Ceiling : 8'
Upper Ceiling Ft : 8'
Exterior Wall Framing
Framing : SIPS
Bedroom Features
Main Floor Master Bedroom
Upstairs Bedrooms
Kitchen Features
Breakfast Nook
Kitchen Island
Additional Room Features
Den Office Study Computer
Storage Area
Outdoor Spaces
Covered Front Porch
Covered Rear Porch

What's Included In This Plan Set


All plans are drawn at ¼” scale or larger and include :

  • Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
  • Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
  • Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
  • Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
  • Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
» See important information before purchasing.
Plan Set
5 Copy Set :
$5000.00
5 printed plan sets mailed to you.
PDF Set :
$5000.00
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
Reproducible Set :
$5000.00
For inexpensive local printing / making minor adjustments by hand. 1 printed set, typically on Bond paper.
CAD Set :
$6500.00
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.
Foundation
Crawlspace:
$0.00
Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.
Additional Options
Audio Video Design :
$100.00
Receive an overlay sheet with suggested placement of audio and video components.
Construction Guide :
$39.00
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.
Lighting Design :
$100.00
Receive an overlay sheet with suggested placement of lighting fixtures.
Mirror Reversed Sets :
$0.00
A mirror-reversed set is a printed copy of your house, resulting in the same image you would see if you held the drawing up to a mirror. Everything, including the text, is backward in relation to the original design. These kinds of drawing are typically used to reorient an original plan more advantageously on a site, either because the homeowner prefers it that way or because of limitations of the site itself. Note: Mirror reverse sets are only available with a 5 copy or 8 copy set. With a Reproducible, PDF, or CAD set, you can print mirrored copies locally. In addition: 5 Copy set selected, should only allow 4 mirrored sets to be selected. 8 Copy set selected, should only allow 7 mirrored sets to be selected.
